Nace Piping Products is a leading manufacturer and exporter of premium quality Butt Welded Fittings. Designed for robust, leak-proof connections, our pipe fittings allow for smooth changes in fluid direction, branching, and pipe diameter reductions. Butt weld joints offer the highest structural strength and are ideal for critical, high-pressure piping systems.
Manufactured strictly to ASME B16.9 and MSS SP-43 standards, our seamless and welded fittings provide exceptional flow characteristics, minimal pressure drop, and superior resistance to corrosion and mechanical stress.
Technical Specifications
Detailed dimensional and standards specifications for our butt welded fittings.
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS1560, BS10 |
|---|---|
| Size | 1/2" NB to 48" NB in (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness (Schedule) | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold / Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Packaging | Wooden Pallets, Wooden Cases, Plywood Boxes, Nylon Bags, or Customized |
Material Grades
We manufacture butt welded fittings using the highest grade ferrous and non-ferrous alloys.
| Material Category | Common Grades Available |
|---|---|
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, 310, 321, 347, 904L |
| Duplex & Super Duplex Steel | ASTM A815 UNS S31803, S32205, S32750, S32760 |
| Carbon Steel | ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 |
| Alloy Steel | ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 |
| Copper Alloys | ASTM / ASME SB 111 UNS NO. C 10100, C 10200, C 10300, C 10800, C 12000, C 12200, C 70600, C 71500 |
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) |
Types of Butt Welded Fittings
We supply a comprehensive range of butt welded fitting configurations to suit specialized industrial pipeline requirements.

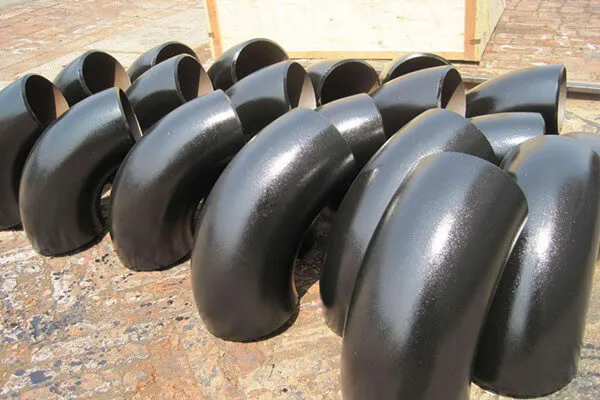

45° & 90° Pipe Elbows
Installed between two lengths of pipe or tubing to allow a change of direction, usually a 90° or 45° angle. Available in Long Radius (LR) and Short Radius (SR).
- Long Radius (LR): Radius is 1.5 times the pipe diameter
- Short Radius (SR): Radius is 1.0 times the pipe diameter
- Usage: Directional flow changes in constrained or unconstrained spaces

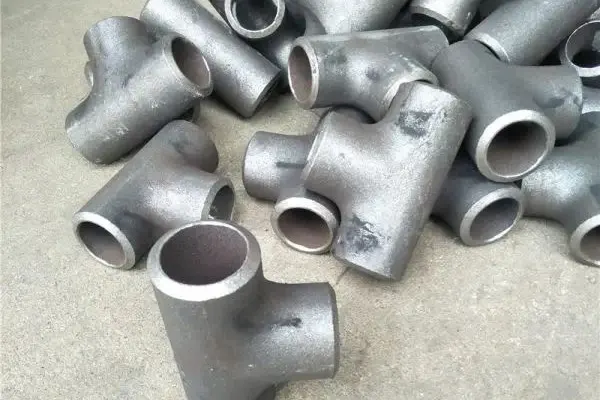

Equal & Reducing Tees
T-shaped pipe fittings with two outlets, at 90° to the connection to the main line. Used to combine or divide fluid flow.
- Equal Tee: Branch diameter is identical to the main pipe
- Reducing Tee: Branch diameter is smaller than the main pipe
- Usage: Fluid branching in continuous pipelines

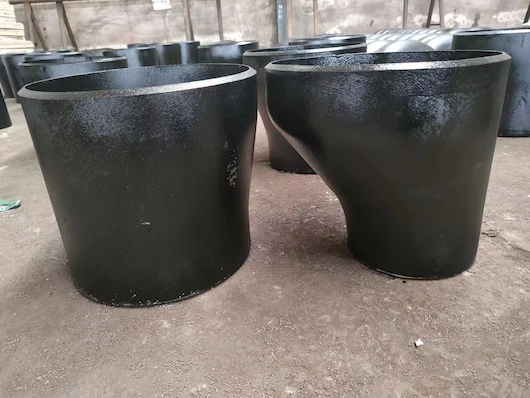

Concentric & Eccentric Reducers
Used to connect pipes of different diameters, optimizing flow and adapting to varying equipment nozzle sizes.
- Concentric Reducer: Cone-shaped, maintains centerline axis (Vertical lines)
- Eccentric Reducer: Flat on one side, prevents air pooling (Horizontal lines)
- Usage: Flow transition, pressure adaptation, pump suction
Pipe Caps & Stub Ends
Caps are used to dead-end a piping system. Stub ends are used in conjunction with lap joint connections for easily dismantled pipeline assemblies.
- Caps: Hemispherical or semi-ellipsoidal closures
- Stub Ends: Short length of pipe with a flared end
- Usage: End-of-line sealing and rapid dismantling nodes
Types of Butt Weld Ends
We supply fittings with highly precise end preparations in accordance with ASME B16.25 standards.
Plain Bevel End
The standard end preparation for butt-welded joints. Typically machined to a 37.5-degree angle with a 1/16" root face, ideal for standard wall thicknesses.
Compound Bevel End
Utilized for very thick walls (typically over 22mm). Features two bevel angles to reduce the volume of weld metal required and prevent excessive heat distortion.
Plain End (PE)
A straight cut (90 degrees) used primarily for smaller diameter fittings, socket weld connections, or slip-on mating.
Threaded End (TE)
Prepared with NPT or BSPT threads for applications where welding is hazardous or the piping system requires regular disassembly.
Standard Dimensional Tolerances (ASME B16.9)
Our strict adherence to ASME B16.9 dimensional tolerances ensures perfect fitment and precise alignment during pipeline construction.
| Dimension | Fitting Size (NPS) | Tolerance (Inches) |
|---|---|---|
| Outside Diameter at Bevel | 1/2" to 2 1/2" | + 0.06" / - 0.03" |
| 3" to 48" | ± 0.06" | |
| Inside Diameter at End | 1/2" to 10" | ± 0.03" |
| 12" to 48" | ± 0.06" | |
| Wall Thickness | 1/2" to 18" | Not less than 87.5% of nominal thickness |
| 20" to 48" | Not less than 87.5% of nominal thickness | |
| Center-to-End (Elbows/Tees) | 1/2" to 8" | ± 0.06" |
| Overall Length (Reducers) | All Sizes | ± 0.06" |
Industrial Applications & Uses of Butt Welded Fittings
Our premium quality butt welded fittings are heavily utilized across global industries where high-pressure fluid control, safety, and reliability are critical.
Oil & Gas
Upstream and downstream piping, refineries, and offshore rigs.
Petrochemicals
Chemical processing plants requiring highly corrosion-resistant alloys.
Power Generation
Nuclear, thermal, and hydroelectric power plant boiler systems.
Water Treatment
Desalination plants and municipal water pipeline networks.
Marine & Shipbuilding
Heavy-duty structural piping and submarine fluid transmission.
Heavy Engineering
Paper & pulp, sugar mills, and large-scale manufacturing units.
Why Source Butt Welded Fittings from Nace Piping Products?
When procuring industrial butt welded fittings for critical pipeline infrastructure, buyers need a manufacturing partner who guarantees absolute precision and material integrity. As a top-rated pipe fittings supplier, we offer:
- Seamless & Welded Options: We manufacture both 100% radiography-tested welded fittings and high-integrity seamless fittings to meet your pressure requirements.
- Precise Edge Beveling: Our fittings undergo advanced CNC machining for perfect compound and plain bevels, ensuring flawless welding in the field.
- 100% Quality Traceability: Every fitting is dispatched with an EN 10204 3.1 Mill Test Certificate (MTC) and undergoes rigorous PMI (Positive Material Identification).
- Global Export & Rapid Delivery: Massive ready-to-ship inventory of standard ASME B16.9 fittings allows us to meet urgent project deadlines globally.
