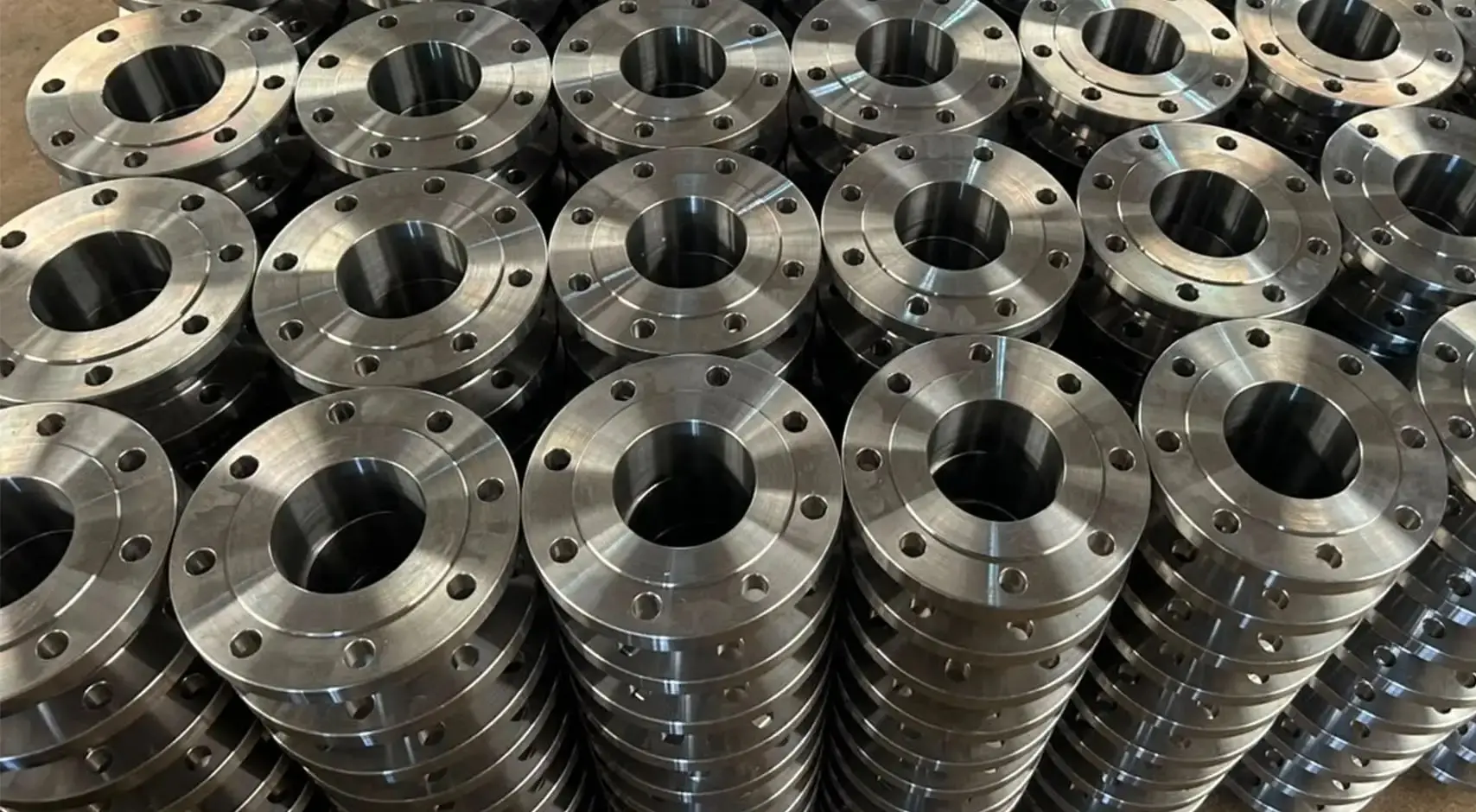

Nace Piping Products is a globally recognized manufacturer and supplier of high-quality industrial flanges. Designed to connect pipes, valves, pumps, and other equipment to form a secure piping system, our flanges are engineered for high-pressure and high-temperature applications across diverse sectors including Oil & Gas, Petrochemical, Marine, and Power Generation.
Manufactured in strict adherence to international standards such as ASME, ANSI, DIN, EN, and JIS standards, our product line ensures absolute leak-proof performance, material integrity, and ease of access for cleaning, inspection, or modification.
Technical Specifications
Detailed dimensional and standards specifications for our flanges.
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
|---|---|
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 DIN Standard ND-6, 10, 16, 25, 40 Etc. |
| BS | BS4504, BS1560, BS10, PN6, PN10, PN16, PN25, PN40, etc. |
| Table | D / E / F / H / J / K |
| API Standards | PSI-2000/3000/5000/10000/ETC |
| JIS Standards | 2220-2004 5k/10k/16k, ETC |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold / Hot Dip Galvanized |
| Manufacturing Process | Forged, Machined, Heat Treated, CNC Milled |
| Test Certificates | EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Packaging | Wooden Pallets, Wooden Cases, Plywood Boxes, Nylon Bags, or Customized |
Material Grades
We manufacture flanges using the highest grade ferrous and non-ferrous alloys.
| Material Category | Common Grades Available |
|---|---|
| Stainless Steel | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
| Duplex & Super Duplex Steel | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Carbon Steel | ASTM / ASME A/SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 |
| Low Temperature Carbon Steel | ASTM A350, LF2, LF3 |
| Alloy Steel | ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 |
| Copper Alloy Steel | ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 |
| Nickel Alloy | ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) |
Types of Flanges
We supply a comprehensive range of flange configurations to suit specialized industrial requirements.

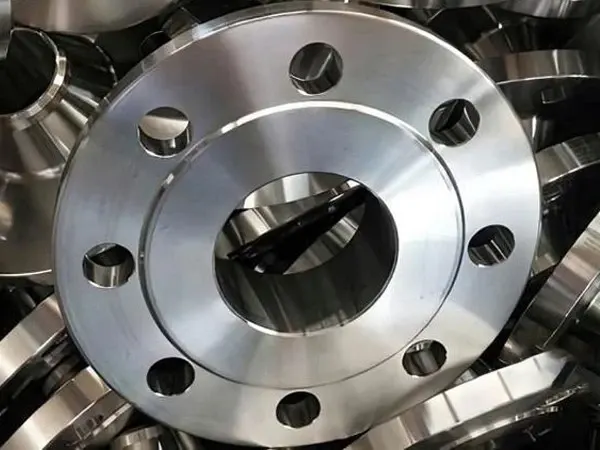

Slip-On Flanges
Slipped over the pipe and welded inside and out. These flanges are ideal for lower pressure applications and provide excellent alignment.
- Usage: Low pressure & temperature applications
- Welding: Double fillet weld (inside & outside)
- Bore: Slightly larger than the pipe OD for easy fitting

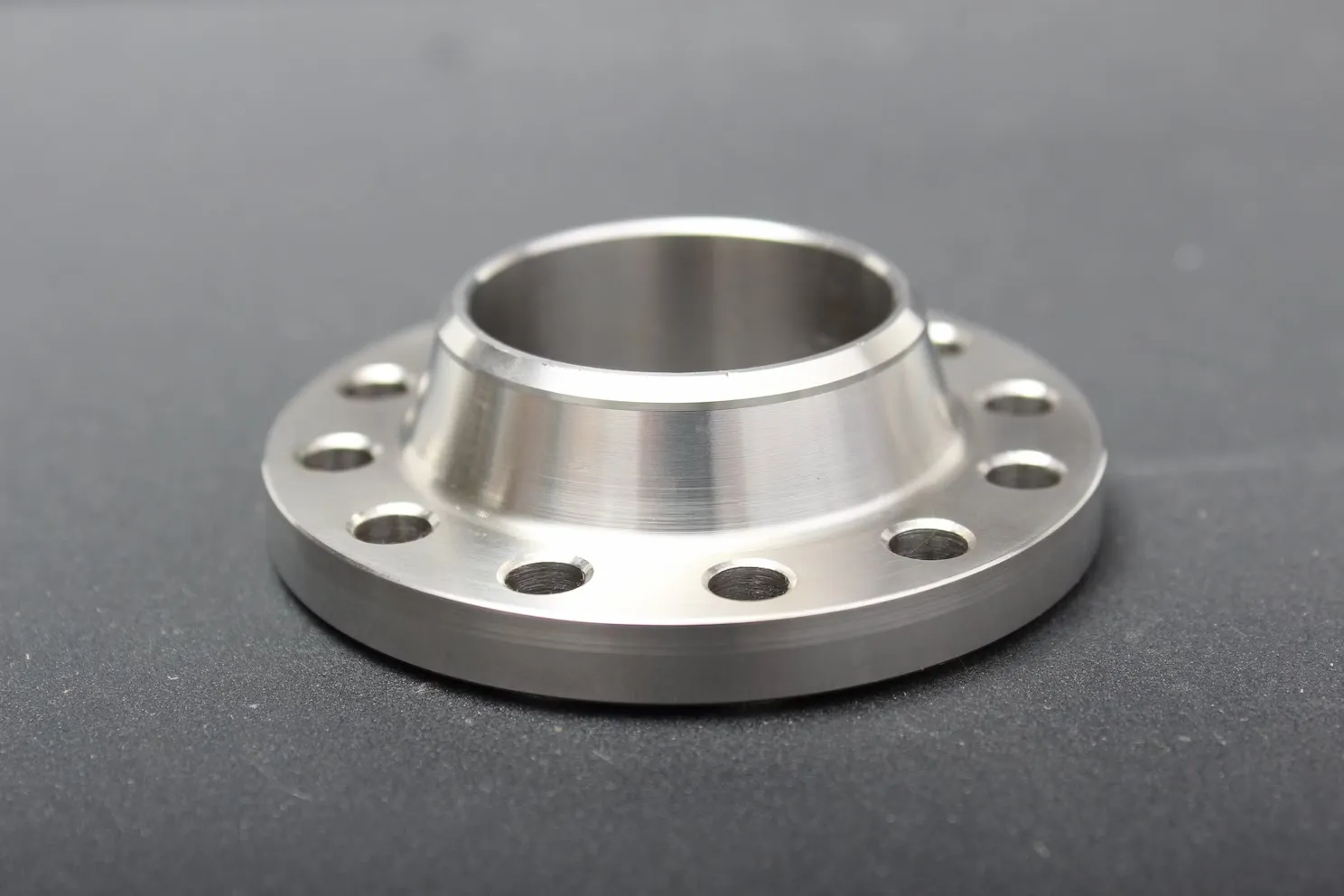

Weld Neck Flanges
Features a long tapered hub that is butt-welded to a pipe. Excellent for high-stress, high-pressure, and high-temperature environments.
- Usage: High stress, pressure & temperature operations
- Advantage: Smooth transition of thickness from flange to pipe
- Testing: Radiography can easily be done to verify weld integrity

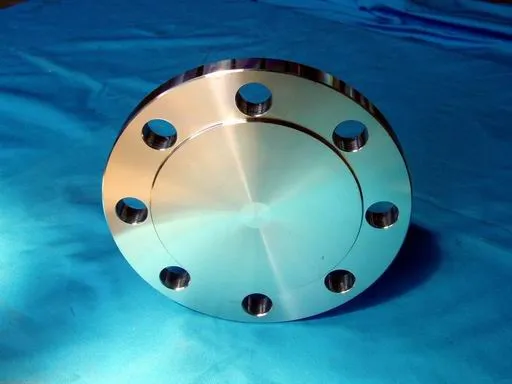

Blind Flanges
Solid flanges used to seal the end of piping systems or pressure vessel openings. Highly stress-resistant.
- Usage: Blanking off ends of piping, valves, and pressure vessels
- Stress: Subjected to highest bending stresses among flange types
- Maintenance: Easily bolted and unbolted for line inspection

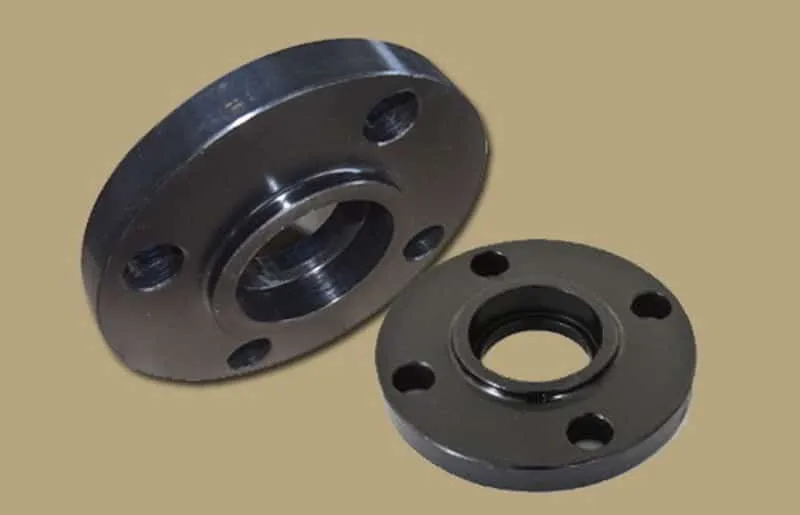

Socket Weld Flanges
The pipe is inserted into the socket and top-welded. Suited primarily for small-size, high-pressure piping systems.
- Usage: Small-diameter, high-pressure systems
- Connection: Single fillet weld on the outer side
- Feature: Internal bore of the flange matches the pipe's inner diameter

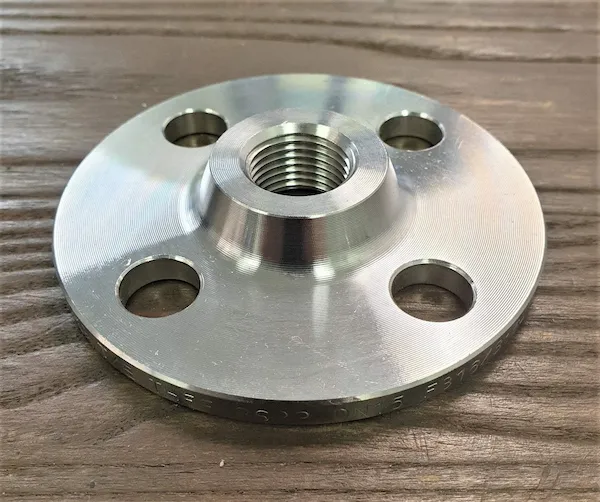

Threaded Flanges
Attached to pipes without welding by screwing onto the pipe's external threads. Ideal for highly explosive environments where welding is unsafe.
- Usage: Hazardous areas where welding cannot be done
- Limitation: Unsuited for systems involving temperature cycles
- Bore: Internally threaded to match external pipe threads

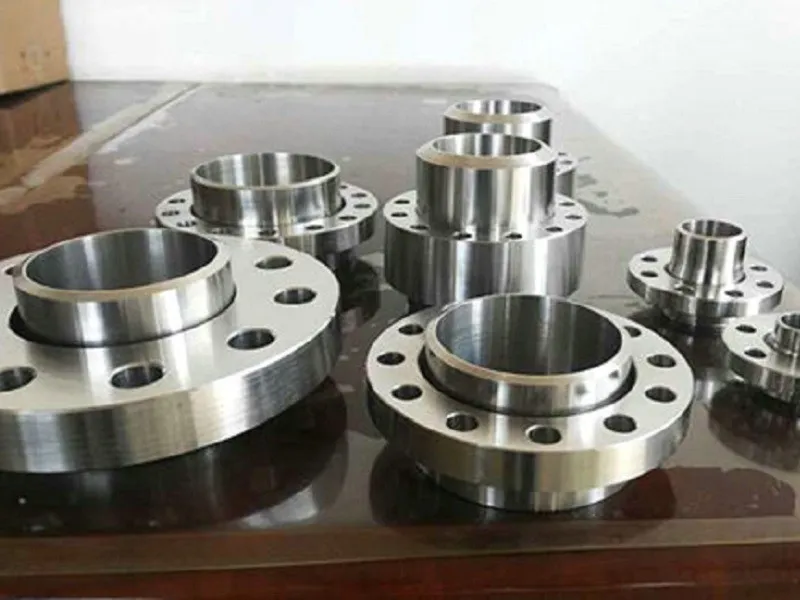

Lap Joint Flanges
Used in conjunction with a stub end. Easily assembled and aligned, perfect for systems that require frequent dismantling for inspection.
- Usage: Systems requiring frequent dismantling or rapid alignment
- Mechanism: Slides over the pipe, held in place by the stub end
- Advantage: Cost-effective for systems requiring expensive alloy pipes
Flange Facing Finishes
We provide precise flange face finishes to ensure optimum gasket sealing according to industry standards.
Stock Finish
The most widely used finish. A continuous spiral or concentric serration with a roughness typically between 250 and 500 micro-inches (Ra).
Smooth Finish
Shows no visually apparent tool markings. Produced with a 0.06 inch radius round-nosed tool with a roughness of 125 to 250 micro-inches (Ra).
Spiral Serrated
A continuous spiral groove generated by a 90-degree tool. Provides excellent grip for gaskets in high-pressure, high-temperature applications.
Cold Water Finish (Mirror)
An exceptionally smooth finish used specifically for metal-to-metal contact, usually requiring no gasket. Roughness is under 63 micro-inches (Ra).
Standard Dimensional Tolerances (ASME B16.5)
Our strict adherence to ASME B16.5 dimensional tolerances ensures perfect fitment and structural integrity.
| Dimension | Flange Size (NPS) | Tolerance (Inches) |
|---|---|---|
| Outside Diameter (O.D.) | 1/2" to 24" | ± 0.06" |
| 26" to 48" | ± 0.12" | |
| Inside Diameter (I.D.) (For Slip-on and Socket Weld) |
1/2" to 10" | + 0.03" / - 0.0" |
| 12" to 48" | + 0.06" / - 0.0" | |
| Thickness | 1/2" to 18" | + 0.12" / - 0.0" |
| 20" to 48" | + 0.18" / - 0.0" | |
| Bolt Circle Diameter | All Sizes | ± 0.06" |
| Bolt Hole Spacing | All Sizes | ± 0.03" |
Industrial Applications & Uses of Flanges
Our premium quality flanges are heavily utilized across global industries where high-pressure fluid control, safety, and reliability are critical.
Oil & Gas
Upstream and downstream piping, refineries, and offshore rigs.
Petrochemicals
Chemical processing plants requiring highly corrosion-resistant alloys.
Power Generation
Nuclear, thermal, and hydroelectric power plant boiler systems.
Water Treatment
Desalination plants and municipal water pipeline networks.
Marine & Shipbuilding
Heavy-duty structural piping and submarine fluid transmission.
Heavy Engineering
Paper & pulp, sugar mills, and large-scale manufacturing units.
Why Source Flanges from Nace Piping Products?
When procuring industrial flanges for critical pipeline infrastructure, buyers need a manufacturing partner who guarantees absolute precision and material integrity. As a top-rated flange supplier, we offer:
- Custom CNC Machining: We manufacture customized flanges according to your bespoke engineering drawings, ensuring non-standard dimensions are perfectly met.
- Advanced Anti-Corrosion Coating: Options include PTFE, zinc-plating, hot-dip galvanizing, and specialized epoxy coatings for harsh saline or chemical environments.
- 100% Quality Traceability: Every flange is dispatched with an EN 10204 3.1 Mill Test Certificate (MTC) and undergoes rigorous PMI (Positive Material Identification).
- Global Export & Rapid Delivery: Massive ready-to-ship inventory of standard ASME/ANSI B16.5 flanges allows us to meet urgent project deadlines globally.
