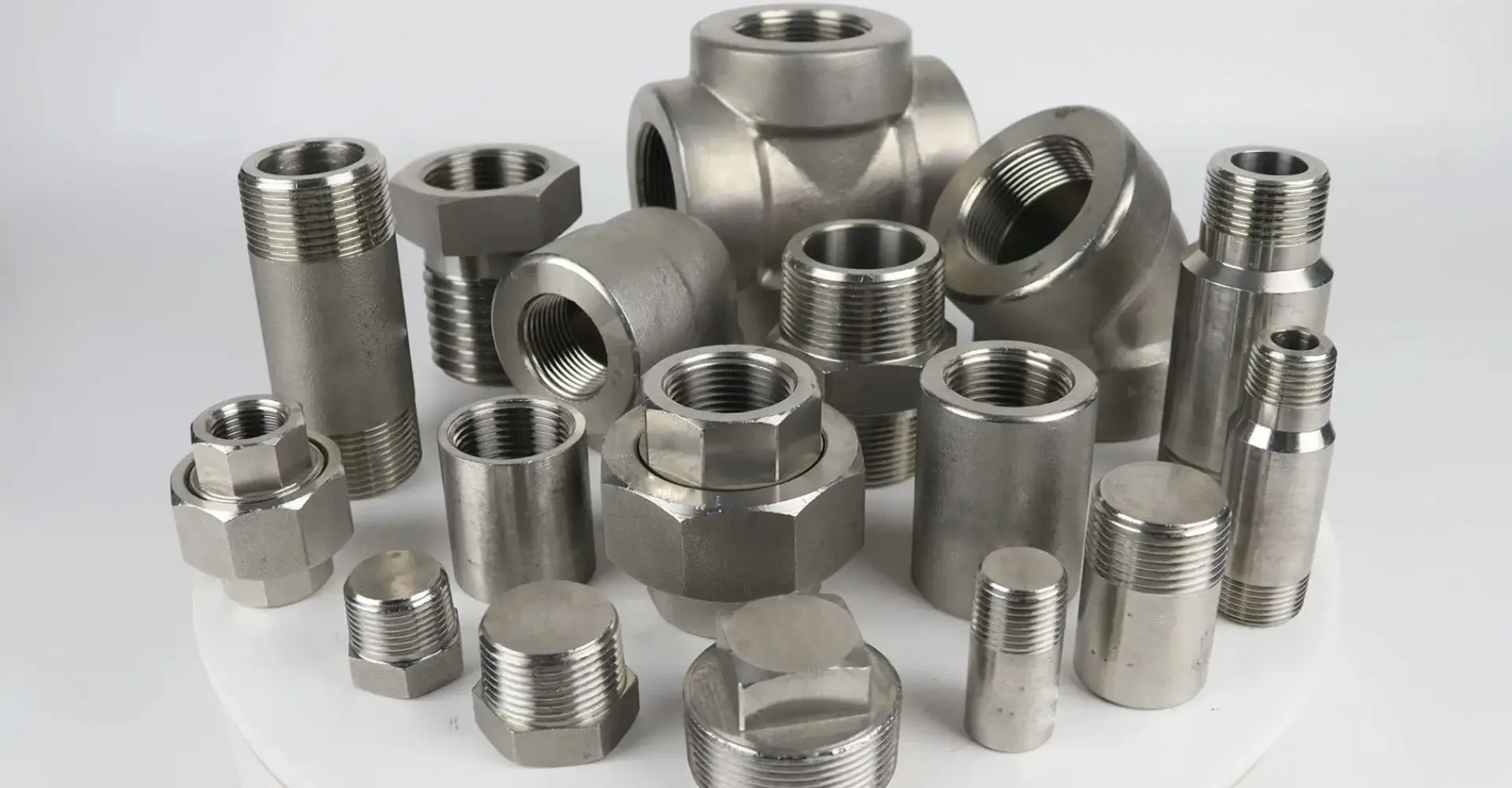

Nace Piping Products is an industry-leading manufacturer and supplier of heavy-duty Forged Pipe Fittings. Forged fittings are crafted from solid steel blocks, providing exceptional mechanical strength, leak-free integrity, and superior resistance to extreme pressures and thermal variations. They are the preferred choice for hazardous and critical fluid handling networks.
Manufactured in strict compliance with ASME B16.11, MSS SP-79, SP-83, and SP-95 standards, our forged fittings are available in Socket Weld (SW) and Threaded (NPT/BSPT) configurations to support piping systems from 2000 LBS up to 9000 LBS pressure ratings.
Technical Specifications
Detailed dimensional and standards specifications for our forged pipe fittings.
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799 |
|---|---|
| Size | 1/8" NB to 4" NB (Socket Weld & Threaded) |
| Pressure Class | Threaded: 2000 LBS, 3000 LBS, 6000 LBS Socket Weld: 3000 LBS, 6000 LBS, 9000 LBS |
| Types of Connection | Socket Weld (S/W) & Screwed (SCRD) – NPT, BSP, BSPT |
| Surface Treatment | Anti-rust Oil, Galvanized (Hot Dip & Electro), Black Paint |
| Manufacturing Process | Hot Forged, Machined (CNC) |
| Test Certificates | EN 10204 3.1, Raw Materials Certificate, PMI Report, Third Party Inspection |
| Packaging | Wooden Pallets, Wooden Cases, Plywood Boxes, or Customized |
Material Grades
We manufacture forged fittings using the highest grade solid steel billets and forgings.
| Material Category | Common Grades Available |
|---|---|
| Stainless Steel | ASTM A182 F304, F304L, F316, F316L, F317L, F321, F310, F347, F904L |
| Duplex & Super Duplex Steel | ASTM A182 F51, F53, F55, F60 |
| Carbon Steel | ASTM A105, A350 LF2, LF3, A694 F42, F46, F52, F60, F65, F70 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Copper Alloys | ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30) |
| Nickel Alloy | ASTM SB564, Monel 400 (N04400), Inconel 600/625/800/825, Hastelloy C276, Alloy 20 |
Types of Forged Fittings
We manufacture a comprehensive array of forged fitting configurations to ensure maximum versatility in high-pressure fluid control networks.

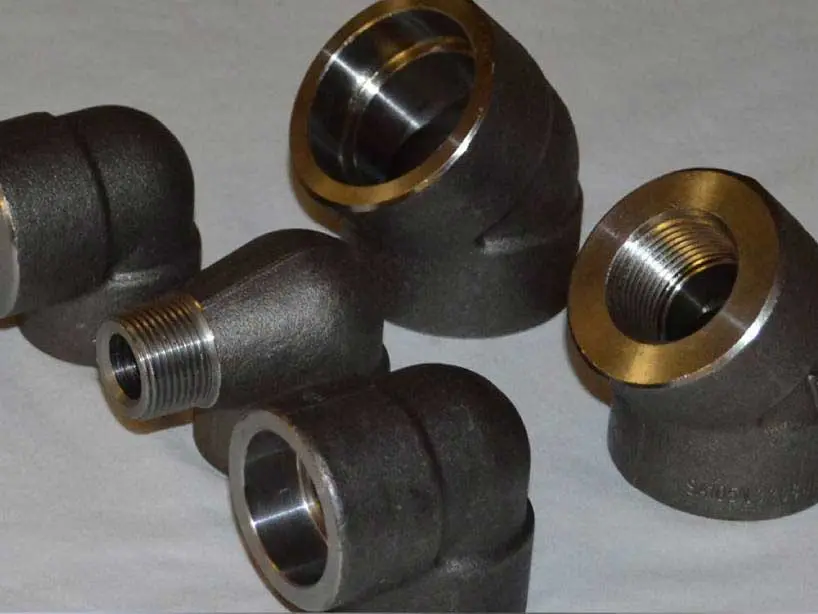

45° & 90° Forged Elbows
Engineered to change the direction of pipeline flow at a precise 45-degree or 90-degree angle. These heavy-duty elbows are forged for extreme structural integrity.
- Variants: 45° Elbow, 90° Elbow
- Connections: Socket Weld (SW), Threaded (NPT/BSPT)
- Application: High-pressure directional flow transitions

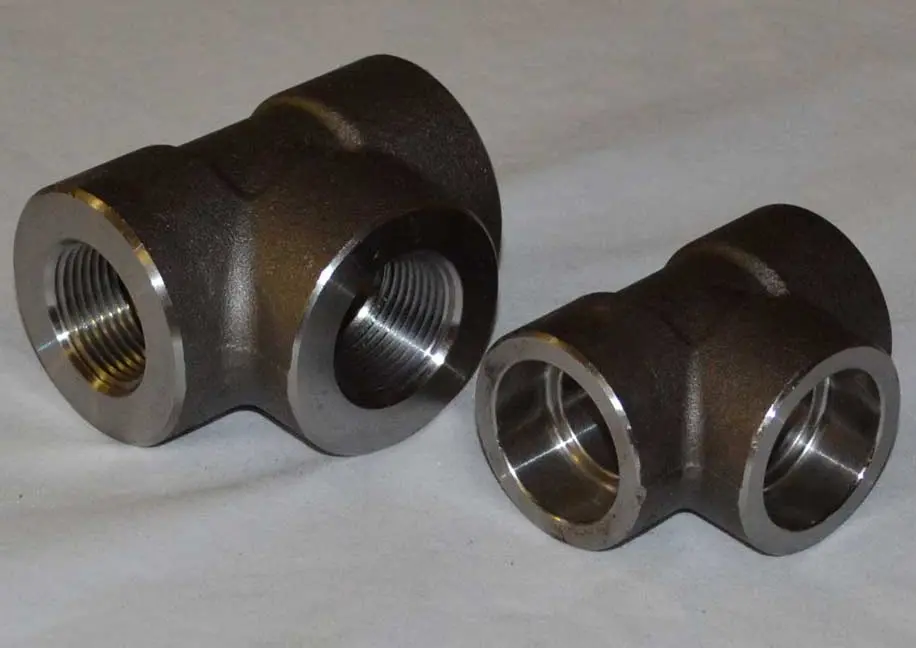

Forged Tees & Crosses
Used to divide or combine fluid flow. A Tee splits flow into two streams, while a Cross distributes it across three auxiliary pipelines.
- Variants: Equal Tee, Reducing Tee, Cross
- Design: 90-degree branch intersections
- Advantage: Exceptional burst strength at intersection joints

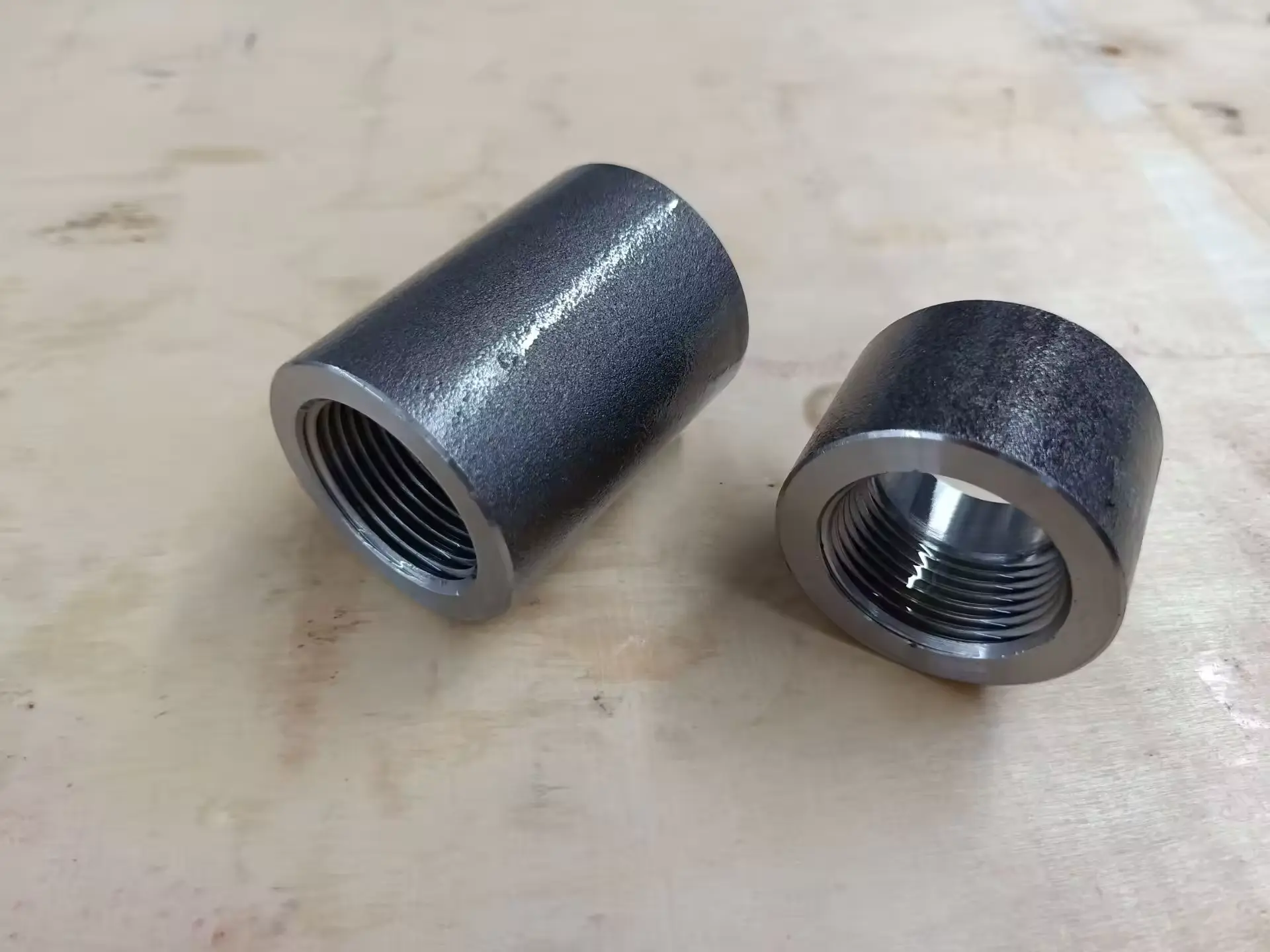

Forged Couplings & Unions
Couplings are used to seamlessly connect two pipes. Unions offer similar connectivity but are designed to allow rapid disconnection for maintenance.
- Variants: Full Coupling, Half Coupling, Union
- Half Coupling: Used for branch connections directly from main pipe
- Union: Features male/female ends with a central nut

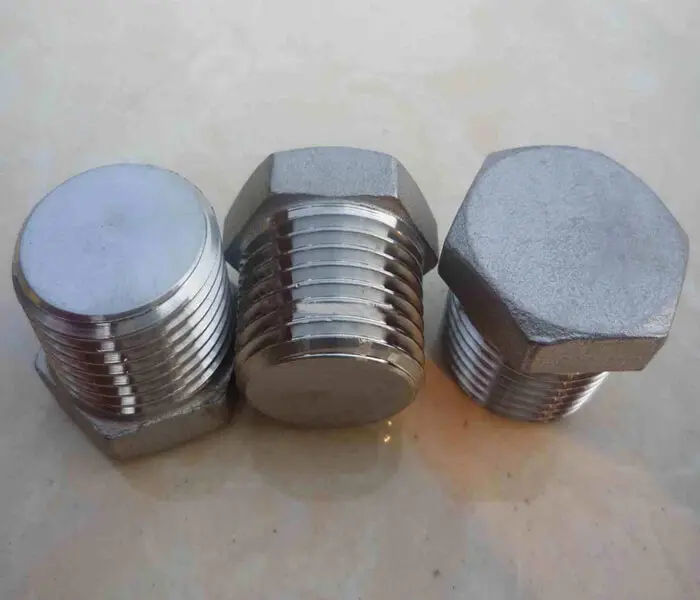

Forged Plugs
Solid fittings inserted into the end of a pipe to seal flow. Available in various drive configurations for easy installation and removal with wrenches.
- Variants: Hex Head Plug, Square Plug, Round Head Plug
- Usage: Temporary or permanent line sealing
- Threads: NPT / BSPT strictly machined for leak-tight seals

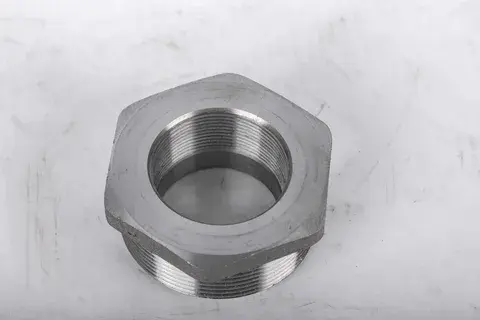

Forged Bushings
Used to reduce a larger threaded opening to a smaller one. They are threaded both inside and out for rapid, space-saving diameter transitions.
- Variants: Hex Head Bushing, Hex Head Inside Bushing
- Advantage: Requires less physical space than a standard reducer
- Application: Instrument connections and fluid reduction

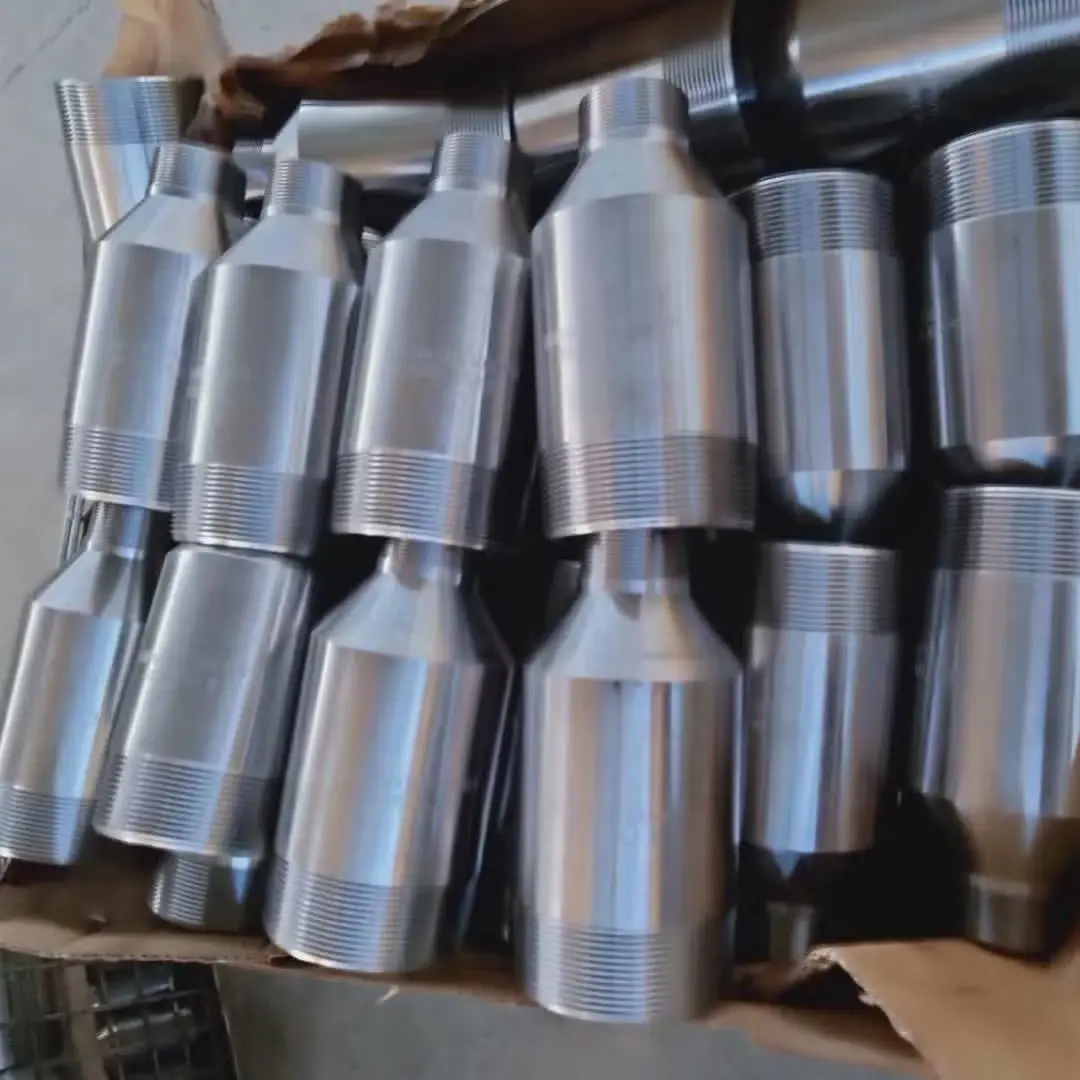

Nipples & Forged Caps
Nipples extend pipelines and connect fittings, while Caps act as high-pressure structural dead-ends welded or threaded over the pipe exterior.
- Nipples: Full Nipple, Half-Nipple (Threaded one end, plain/beveled on other)
- Caps: Hemispherical external sealing
- Pressure: Engineered to withstand up to 9000 LBS class
Types of Forged End Connections
Forged fittings are manufactured with two primary connection types, engineered for extremely secure, leak-proof joints in critical fluid handling systems.
Socket Weld (SW)
The pipe is inserted into a recessed area (socket) of the fitting before being fillet-welded. Provides exceptional structural strength and minimizes the risk of internal weld protrusion into the pipeline.
Threaded (NPT / BSPT)
Features internal or external threads (most commonly NPT). Ideal for highly explosive environments where welding is prohibited, or for systems that require frequent disassembly and maintenance.
Standard Dimensional Tolerances (ASME B16.11)
Our strict adherence to ASME B16.11 ensures that socket weld and threaded dimensions provide absolute structural and leak-proof integrity.
| Dimension | Fitting Size (NPS) | Tolerance (Inches) |
|---|---|---|
| Bore Diameter of Socket | 1/8" to 3/4" | ± 0.010" |
| 1" to 4" | ± 0.015" | |
| Socket Depth | 1/8" to 4" | ± 0.060" (Minimum) |
| Concentricity of Bores | 1/8" to 2" | 0.030" TIR max |
| 2 1/2" to 4" | 0.060" TIR max | |
| Center-to-Bottom of Socket | 1/8" to 4" | ± 0.030" |
| Wall Thickness (Min) | 1/8" to 4" | Per ASME B16.11 Table 4 (Varies by Class) |
Industrial Applications of Forged Fittings
Our premium quality forged fittings are heavily utilized across global industries where extreme high-pressure fluid control, safety, and reliability are critical.
Oil & Gas
Upstream and downstream piping, refineries, and offshore rigs.
Petrochemicals
Chemical processing plants requiring highly corrosion-resistant alloys.
Power Generation
Nuclear, thermal, and hydroelectric power plant boiler systems.
Water Treatment
Desalination plants and municipal water pipeline networks.
Marine & Shipbuilding
Heavy-duty structural piping and submarine fluid transmission.
Heavy Engineering
Paper & pulp, sugar mills, and large-scale manufacturing units.
Why Source Forged Fittings from Nace Piping Products?
When procuring industrial forged pipe fittings for critical infrastructure, buyers need a manufacturing partner who guarantees absolute precision and material integrity. As a top-rated forged fittings supplier, we offer:
- Heavy-Duty Pressure Ratings: We manufacture fittings rigorously tested for 2000#, 3000#, 6000#, and 9000# classes, offering uncompromising burst strength.
- Precise CNC Threading: All NPT and BSPT threaded fittings undergo advanced CNC machining for flawless engagement and zero-leak performance.
- 100% Quality Traceability: Every fitting is dispatched with an EN 10204 3.1 Mill Test Certificate (MTC) and undergoes rigorous PMI (Positive Material Identification).
- Global Export & Rapid Delivery: Massive ready-to-ship inventory of standard ASME B16.11 fittings allows us to meet urgent project deadlines globally.
