Nace Piping Products is a leading manufacturer, supplier, and exporter of high-quality industrial wire mesh, woven wire cloth, and welded wire panels. Engineered to exacting tolerances, our wire mesh provides dependable separation, filtration, and structural reinforcement for highly demanding environments.
We supply an extensive range of woven patterns—from coarse security netting to ultra-fine micron filtration cloth. Our mesh is available in premium 304/316 Stainless Steel, Galvanized Steel, and highly specialized superalloys like Monel, Inconel, and Hastelloy for use in highly corrosive chemical and petrochemical processes.
General Technical Specifications
A summary of our broad manufacturing capabilities and dimensional limits for woven and welded wire products.
| Mesh Count | From coarse 1 x 1 Mesh up to ultra-fine 635 x 635 Mesh (per linear inch). |
|---|---|
| Wire Diameter | 0.02 mm (ultra-fine filtration) to 10.0 mm (heavy structural mesh). |
| Standard Roll Dimensions | Widths up to 3000 mm | Lengths standard 30 meters (custom lengths available). |
| Material Grades | Stainless Steel (304/304L, 316/316L), Galvanized, Copper, Brass, Monel, Inconel, Titanium. |
| Weave Types | Plain, Twilled, Plain Dutch, Twilled Dutch, Crimped, and Welded. |
Standard Weave Patterns & Styles
The structural integrity and filtration accuracy of wire mesh is determined by its weaving technique. We offer all major weaving styles.

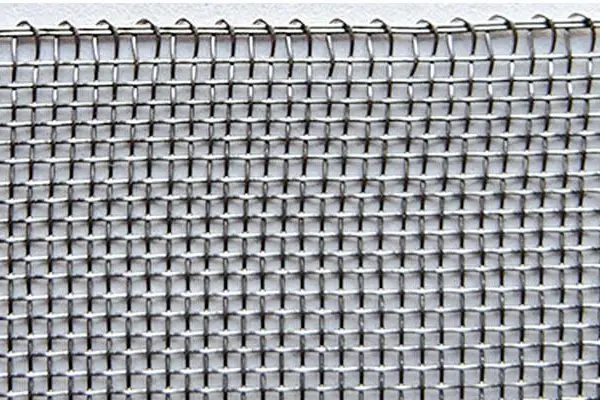

Plain Weave Mesh
The most common and economical weaving style. Each warp wire passes alternately over and under each weft wire at 90-degree angles.
- Characteristics: Square openings, high flow rate, and simple maintenance.
- Common Applications: General industrial sieving, window screens, architectural mesh, basic fluid filtration.

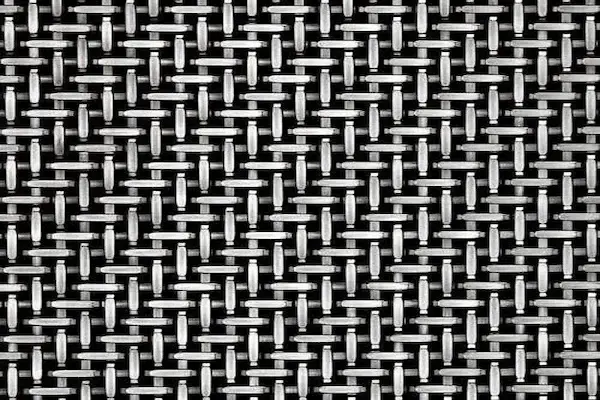

Twilled Weave Mesh
Each warp wire alternately crosses over two, then under two, weft wires. This allows for the use of heavier wire diameters while maintaining a fine mesh count.
- Characteristics: Extremely strong, capable of handling higher loads than plain weaves.
- Common Applications: Heavy-duty particle sizing, aerospace filters, pressure vessels.

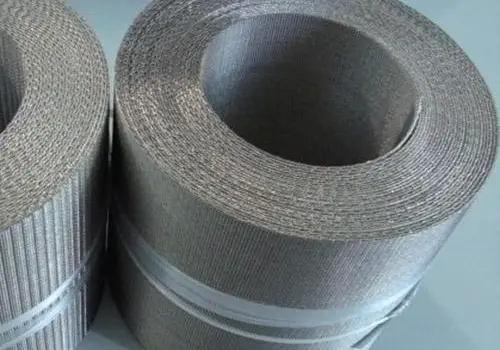

Plain Dutch Weave
Woven similarly to a plain weave, but the warp wires are thicker and spaced further apart, while weft wires are finer and tightly driven together.
- Characteristics: Zero straight-through open area. High mechanical strength and fine micron filtration.
- Common Applications: Polymer extrusion screens, centrifuge linings, chemical liquid filtration.

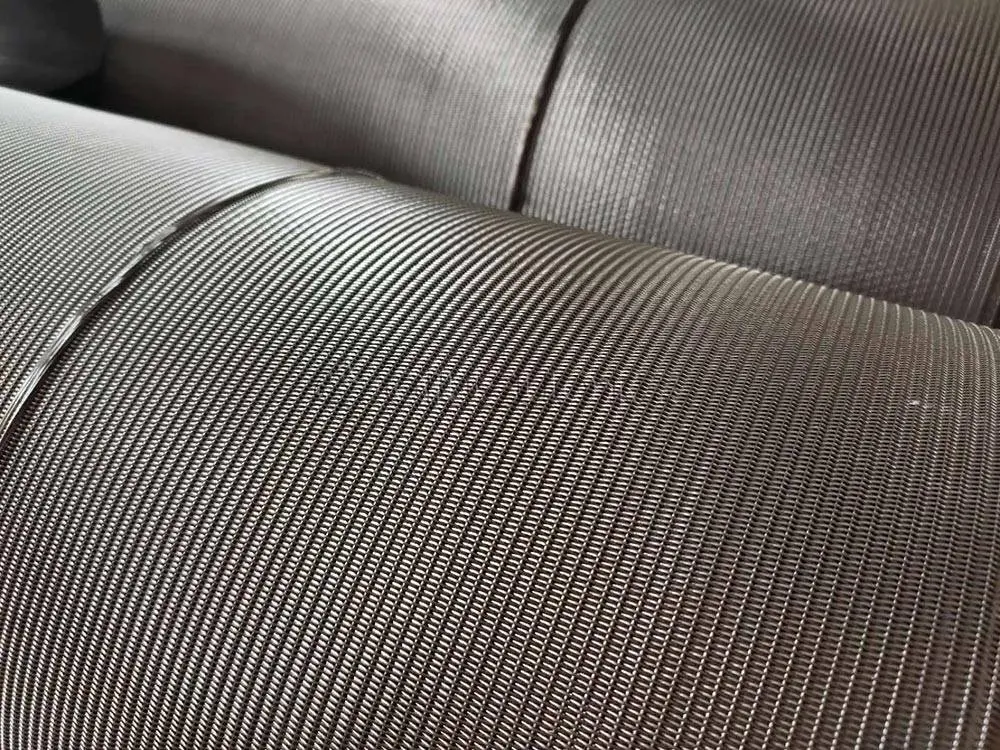

Twilled Dutch Weave
Combines twill weaving and dutch weaving principles to produce the absolute finest woven mesh available, capable of micron-level filtration.
- Characteristics: Ultra-fine absolute filtration (down to 3 microns) with exceptional tensile strength.
- Common Applications: High-pressure hydraulic filters, fuel filters, critical pharmaceutical separation.

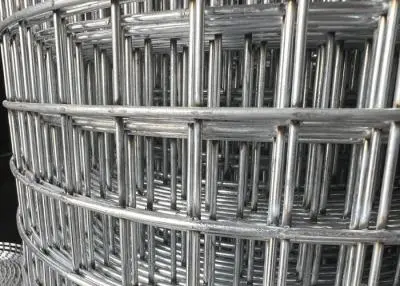

Welded Wire Mesh
Instead of weaving, the intersecting warp and weft wires are permanently resistance-welded at every junction, creating an incredibly rigid panel.
- Characteristics: Non-fraying, structurally stable, perfectly uniform grid.
- Common Applications: Concrete reinforcement, heavy security fencing, machine guards, animal enclosures.

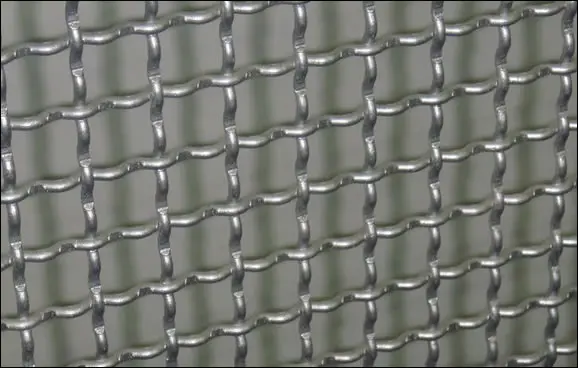

Crimped Wire Mesh
Heavy-duty wires are pre-crimped (corrugated) prior to weaving. This locking mechanism prevents wires from shifting under severe impact.
- Characteristics: Extreme abrasion resistance and impact absorption.
- Common Applications: Mining screens, rock crushers, aggregate vibrating screens, heavy barbecue grills.
Standard Wire Mesh (Plain Weave)
| Mesh Count | Wire Dia (mm) | Aperture (mm) | Open Area (%) |
|---|---|---|---|
| 2 x 2 | 1.60 | 11.10 | 76.4% |
| 4 x 4 | 1.20 | 5.15 | 65.9% |
| 8 x 8 | 0.71 | 2.47 | 60.2% |
| 10 x 10 | 0.56 | 1.98 | 60.8% |
| 20 x 20 | 0.35 | 0.92 | 52.4% |
| 40 x 40 | 0.25 | 0.38 | 36.0% |
| 60 x 60 | 0.16 | 0.26 | 38.1% |
| 100 x 100 | 0.11 | 0.14 | 31.4% |
| 200 x 200 | 0.05 | 0.07 | 33.6% |
| 400 x 400 | 0.03 | 0.03 | 22.1% |
Dutch Weave Micron Filter Ratings
| Mesh Count (Warp x Weft) | Weave Style | Absolute Micron (um) |
|---|---|---|
| 12 x 64 | Plain Dutch | ~350 um |
| 24 x 110 | Plain Dutch | ~180 um |
| 30 x 150 | Plain Dutch | ~130 um |
| 50 x 250 | Plain Dutch | ~70 um |
| 80 x 700 | Twilled Dutch | ~35 um |
| 165 x 1400 | Twilled Dutch | ~18 um |
| 200 x 1400 | Twilled Dutch | ~12 um |
| 325 x 2300 | Twilled Dutch | ~7 um |
| 400 x 2800 | Twilled Dutch | ~3-5 um |
Industrial Applications of Wire Mesh
Our woven wire mesh provides dependable separation, precision filtration, and robust structural reinforcement across global heavy industries.
Chemical Filtration
Micron-rated extruder screens, catalyst recovery filters, and acid-resistant sieves.
Pharmaceuticals
Ultra-hygienic stainless steel micron filtration cloth for precise fluid separation.
Oil & Gas Processing
Heavy-duty sand screens, mud logging filters, and offshore shaker screens.
Food & Beverage
Flour milling sieves, syrup straining meshes, and FDA-compliant drying trays.
Architecture & Security
Protective window grilles, machine guarding, and highly aesthetic architectural facades.
Mining & Aggregate
Rigid, high-tensile crimped wire mesh for extreme impact rock crushing screens.
Why Source Wire Mesh from Nace Piping Products?
When procuring industrial wire mesh and woven wire cloth, consistency in aperture size and structural integrity are non-negotiable. As a globally certified manufacturer, we provide:
- Micron-Level Precision: We supply ultra-fine Twilled Dutch weaves capable of absolute filtration down to 3 microns.
- Exotic Alloy Weaving: Beyond standard stainless steel, we weave mesh from highly corrosion-resistant Monel, Inconel, Hastelloy, and Titanium.
- Diverse Weave Structures: From simple Plain Weaves for basic sieving to high-pressure Dutch Weaves and extreme-impact Crimped meshes.
- Value-Added Processing: In-house slitting, precision shearing, circle stamping, and ultrasonic cleaning for ready-to-install filter discs.
