Nace Piping Products is a premier manufacturer, supplier, and exporter of industrial Pipes and Tubes. We provide extensive piping solutions crafted from high-performance ferrous and non-ferrous alloys. Our pipes and tubes are engineered to ensure absolute structural integrity, exceptional corrosion resistance, and flawless performance across extreme temperatures and pressures.
Our robust manufacturing capabilities allow us to supply pipes and tubes in Seamless, ERW (Electric Resistance Welded), and Fabricated forms. From standard Carbon Steel pipelines to exotic alloys like Titanium, Tantalum, and Hastelloy, we cover a massive size range of 15 NB up to 1200 NB (up to 1500 NB for specific grades).
Technical Specifications
Comprehensive capabilities and dimensional ranges for our piping products.
| Range (Size) | 15 NB up to 1200 NB |
|---|---|
| Schedules (Thickness) | SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160, & XXS |
| Form | Seamless / ERW / Welded / Fabricated in Round, Square, Rectangular, Hydraulic. |
| Length | Single Random, Double Random & Cut Length |
| Ends | Plain End, Beveled End, Threaded |
| Coating & Features | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Draw & Expansion |
Material Grades
We manufacture and supply pipes and tubes across an exhaustive range of international material standards.
| Material Category | Available Specifications & Grades |
|---|---|
| Stainless Steel | ASTM / ASME SA 312: TP 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L. ASTM / ASME SA 358 CL 1 & 3: GR. 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 321, 321H, 347. |
| Duplex Steel | ASTM / ASME SA 790: UNS S31803, S32205, S32550, S32750, S32760. |
| Carbon Steel | ASTM A53: GR. A, B | ASTM A106: GR. A, B, C | API 5L: GR. B, X42, X46, X52, X60, X70 | ASTM A691: GRA, B, C. |
| Alloy Steel | ASTM A335: P1, P5, P9, P11, P12, P22, P23, P91. ASTM A691: 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91. |
| Nickel Alloy | ASTM SB 163: UNS 2200 (Nickel 200), UNS 2201 (Nickel 201). ASTM SB 163/165: UNS 4400 (Monel 400). ASTM SB 464: UNS 8020 (Alloy 20/20 CB 3). |
| Inconel & Incoloy | Inconel: 600 (SB 167/517), 601 (SB 167), 625 (SB 704/705), 625LCF, 686, 718, 800, 825 (SB 704/705), X-750. Incoloy: 800, 825, 925, A-286, DS (ASTM B407, B829, B514, B775, B515, B751). |
| Hastelloy | Grades: C-22, C-276 (ASTM SB 619/622/626 UNS 10276), C-2000. |
| Copper Alloy | ASTM SB 111: UNS C10100, C10200, C10300, C10800, C12000, C12200, C70600, C71500. ASTM SB 466: UNS C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30). |
| Titanium & Tantalum | Grades: Grade 1, 2, 3, 4, 5, 7, 9, 23. |
Standard Pipe Schedule Chart (ASME B36.10 / B36.19)
Nominal Pipe Size (NPS) and corresponding Outside Diameter (OD) with standard wall thicknesses across primary schedules.
| NPS (Inch) | O.D. (mm) | SCH 10 (mm) | SCH 40 / STD (mm) | SCH 80 / XS (mm) | SCH 160 (mm) |
|---|---|---|---|---|---|
| 1/2" | 21.34 | 2.11 | 2.77 | 3.73 | 4.78 |
| 3/4" | 26.67 | 2.11 | 2.87 | 3.91 | 5.56 |
| 1" | 33.40 | 2.77 | 3.38 | 4.55 | 6.35 |
| 1 1/4" | 42.16 | 2.77 | 3.56 | 4.85 | 6.35 |
| 1 1/2" | 48.26 | 2.77 | 3.68 | 5.08 | 7.14 |
| 2" | 60.33 | 2.77 | 3.91 | 5.54 | 8.74 |
| 2 1/2" | 73.03 | 3.05 | 5.16 | 7.01 | 9.53 |
| 3" | 88.90 | 3.05 | 5.49 | 7.62 | 11.13 |
| 4" | 114.30 | 3.05 | 6.02 | 8.56 | 13.49 |
| 5" | 141.30 | 3.40 | 6.55 | 9.53 | 15.88 |
| 6" | 168.28 | 3.40 | 7.11 | 10.97 | 18.26 |
| 8" | 219.08 | 3.76 | 8.18 | 12.70 | 23.01 |
| 10" | 273.05 | 4.19 | 9.27 | 15.09 | 28.58 |
| 12" | 323.85 | 4.57 | 10.31 | 17.48 | 33.32 |
| 14" | 355.60 | 6.35 | 11.13 | 19.05 | 35.71 |
| 16" | 406.40 | 6.35 | 12.70 | 21.44 | 40.49 |
| 18" | 457.20 | 6.35 | 14.27 | 23.83 | 45.24 |
| 20" | 508.00 | 6.35 | 15.09 | 26.19 | 50.01 |
| 24" | 609.60 | 6.35 | 17.48 | 30.96 | 59.54 |
Types of Pipes & Tubes
Our inventory includes a wide spectrum of piping forms engineered for various structural, fluid, and high-pressure capabilities.

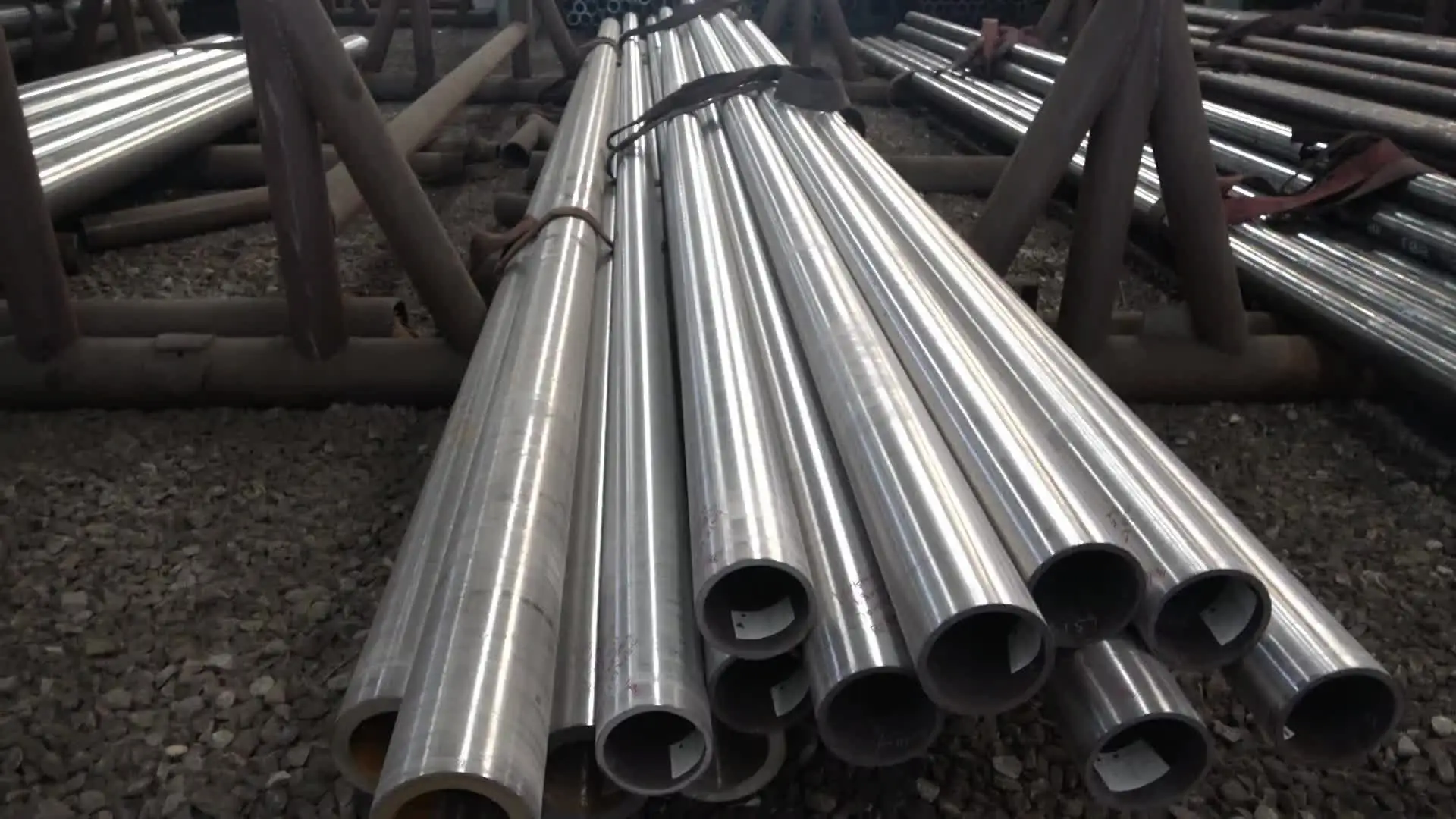

Seamless Pipes & Tubes
Extruded and drawn from a solid steel billet, offering the highest pressure rating without any longitudinal weld seams.
- Advantage: Exceptional pressure tolerance and uniform strength
- Shapes: Round, Square, Rectangular, Hydraulic
- Application: High-pressure oil/gas lines, boiler tubes, hydraulic systems

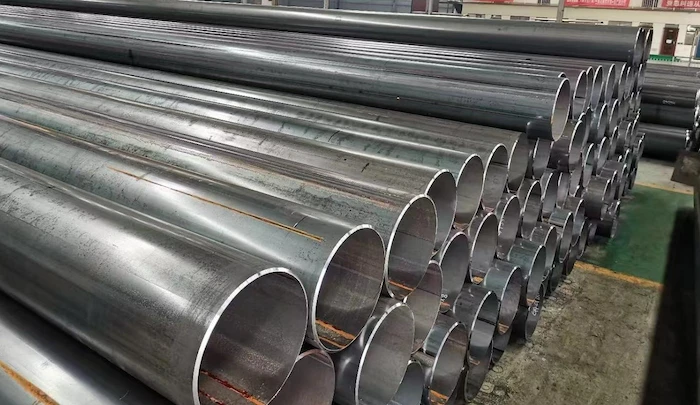

ERW Pipes (Electric Resistance Welded)
Manufactured by cold-forming steel strips into tubes and welding them using high-frequency electrical current, leaving a highly uniform weld seam.
- Advantage: Highly cost-effective with excellent dimensional accuracy
- Sizes: Wide range of standard diameters
- Application: Low/medium pressure fluid transmission, water lines, structural supports

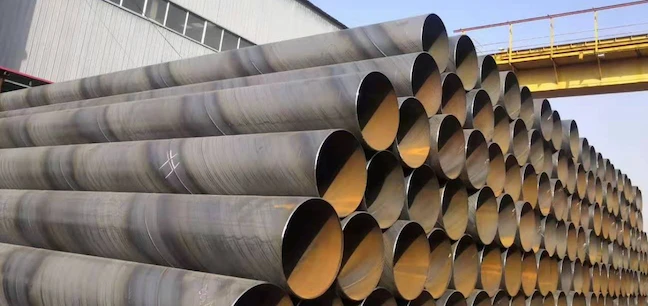

LSAW / HSAW Welded Pipes
Longitudinal Submerged Arc Welded (LSAW) or Helical Submerged Arc Welded (HSAW) pipes designed for massive diameters.
- Advantage: Available in extremely large ODs and heavy wall thicknesses
- Sizes: Up to 1200 NB (or larger for specific projects)
- Application: Major cross-country pipelines, piling, heavy infrastructure

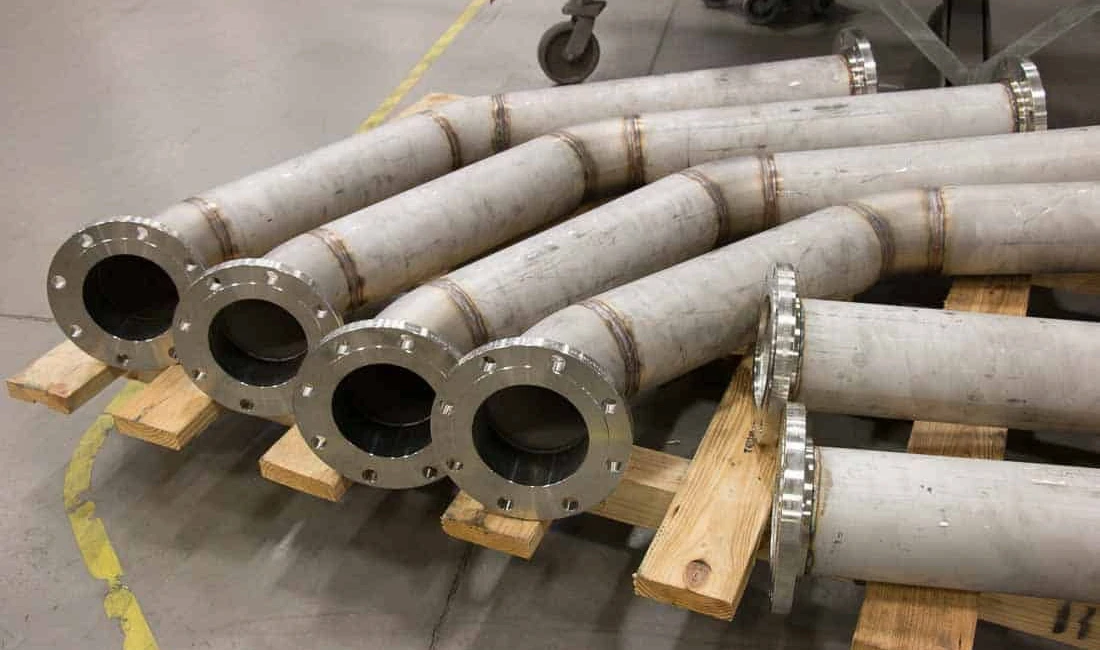

Fabricated Pipes
Custom-cut and rolled from plates or specifically fabricated to meet unconventional dimensional or geometrical specifications.
- Customization: Unlimited variations in length and angles
- Coatings: Often treated with Epoxy, FBE, or Hot Dip Galvanizing
- Application: Specialized plant piping grids, exhaust systems, structural columns
Piping End Configurations
We supply pipes and tubes with highly precise end preparations for flawless joining and welding.
Plain End (PE)
Cut at a 90-degree angle. Typically used for smaller diameter pipes, socket weld fittings, or slip-on flanges where no welding bevel is necessary.
Beveled End (BE)
Machined to a specific angle (usually 37.5°). Essential for butt-welded joints to ensure full weld penetration and superior joint strength.
Threaded End (TE)
CNC-machined with tapered threads (like NPT or BSP). Ideal for lower pressure systems where welding is hazardous or maintenance is frequent.
Value-Added Piping Services
Beyond standard manufacturing, we offer advanced treatments and fabrication features to ensure our pipes are ready for extreme environments.
| Hot Dipped Galvanizing | Zinc coating applied for exceptional exterior corrosion resistance against moisture and environmental elements. |
| Epoxy & FBE Coating | Fusion Bonded Epoxy (FBE) provides an advanced thermoset polymer barrier against soil stresses, chemicals, and saltwater. |
| Electro Polish | Electrochemical process used for stainless tubes to achieve a micro-smooth, ultra-clean surface for sanitary/pharmaceutical use. |
| Draw & Expansion | Cold drawing and thermal expansion services to manipulate standard tubes into precise, non-standard dimensional requirements. |
Industrial Applications of Pipes & Tubes
Our premium quality pipes and tubes are heavily utilized across global industries where extreme high-pressure fluid control, safety, and reliability are critical.
Oil Refineries
Upstream extraction, midstream transmission, and downstream processing.
Petrochemicals
Handling aggressive chemical reagents in corrosive, high-temp environments.
Fertilizers Plants
High-pressure piping systems handling ammonia, urea, and phosphoric acids.
Sugar Mills
Heavy duty boiler tubes, evaporators, and juice heating pipeline systems.
Pharmaceuticals
Electro-polished sanitary tubing for high-purity fluid and gas transfer.
Textile Machinery
Precision structural tubes and fluid handling networks for processing units.
Why Source Pipes & Tubes from Nace Piping Products?
When procuring industrial pipes and tubes for critical infrastructure, buyers need a manufacturing partner who guarantees absolute precision and material integrity. As a top-rated piping supplier, we offer:
- Massive Size Range: From ultra-small 15 NB instrument tubes to massive 1200 NB (up to 1500 NB for custom alloys) cross-country LSAW pipes.
- Exotic Alloy Expertise: We maintain extensive inventory and manufacturing capabilities for highly specialized alloys including Hastelloy, Inconel, Monel, and Titanium.
- 100% Quality Traceability: Every pipe batch undergoes hydrostatic testing, NDT (Non-Destructive Testing), and is dispatched with EN 10204 3.1 MTC.
- Global Export Network: With robust inventory across standard schedules (10S through XXS), we rapidly supply large-scale projects globally.
