Nace Piping Products is an industry-leading manufacturer, supplier, and exporter of high-grade industrial Plates, Sheets, and Foils. Engineered for outstanding strength-to-weight ratios and severe corrosion resistance, our flat-rolled products are the foundation of major infrastructural and manufacturing projects globally.
We maintain a massive, ready-to-dispatch inventory spanning conventional Carbon Steel (SA 516 Gr 70), Stainless & Duplex Steels to highly specialized exotic alloys including Hastelloy, Inconel, Titanium, and Tantalum. All materials are fully compliant with ASTM, ASME, and NACE MR 01-75 sour service standards.
General Technical Specifications
A summary of our broad dimensional capabilities for flat-rolled products.
| Thickness Range | From ultra-thin 0.03 mm (Foils) up to massive 100 mm (Heavy Plates). |
|---|---|
| Width Range | Available up to 2500 mm. |
| Length Range | Available up to 8000 mm (custom cut lengths available). |
| Material Grades | Carbon Steel (SA 516 Gr 70), Stainless Steel, Duplex, Nickel & Copper Alloy, Hastelloy, Inconel, Incoloy, Monel, Titanium, Tantalum. |
| Compliance | NACE MR 01-75s, ASTM, ASME, DIN, BS, EN. |
Available Material Grades
Explore our extensive range of flat-rolled products manufactured in diverse metallurgical configurations to suit high-temperature, corrosive, and heavy structural applications.
Carbon Steel
Pressure vessel and boiler quality carbon steel plates offering excellent weldability and notch toughness. SA 516 Gr 70 is our regularly supplied grade, maintained in ready stock for quick dispatch.
- Pressure Vessel Grades: ASTM A516 / ASME SA 516 (Gr 60, 65, 70)
- Regularly Supplied: SA 516 Gr 70 in Normalized condition, also available for NACE MR 01-75 sour service
- Dimension Range: 5 mm to 100 mm Thick | Up to 2500 mm Width | Up to 8000 mm Length

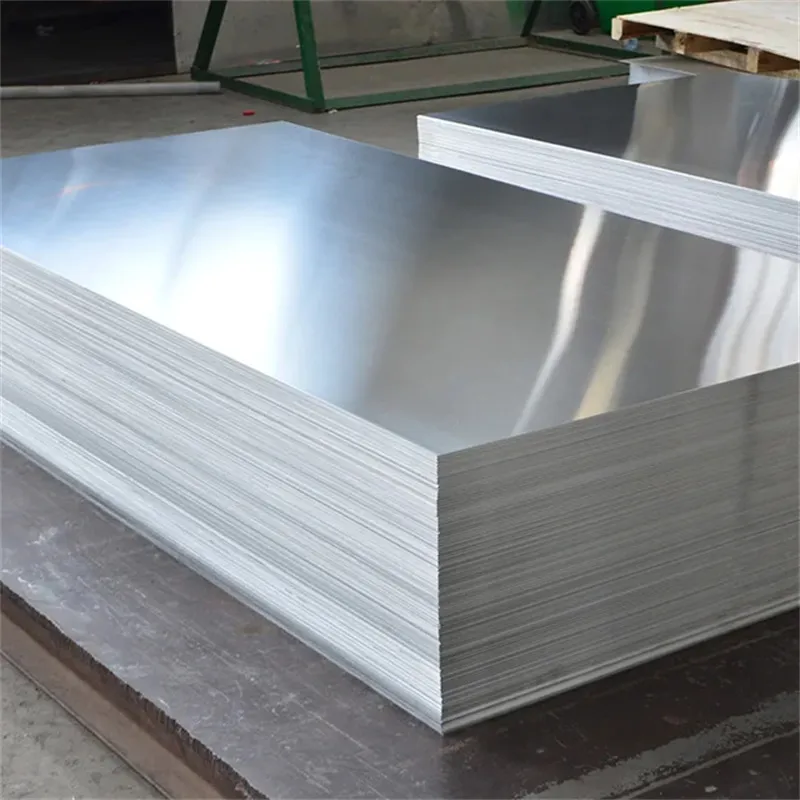

Stainless & Duplex Steel
Highly versatile flat-rolled products offering excellent oxidation resistance and high strength. Supplied fully compliant with NACE MR 01-75 sour service requirements.
- Stainless Steel: ASTM/ASME SA 240 (304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 316L, 316TI, 317, 317L, 321, 321H, 347, 347H, 409, 410, 410S, 430)
- Duplex Steel: ASTM/ASME SA 240 (UNS S31803, S32205, S32550, S32750, S32760)
- Dimension Range: 0.1 mm to 100 mm Thick | Up to 2500 mm Width | Up to 8000 mm Length

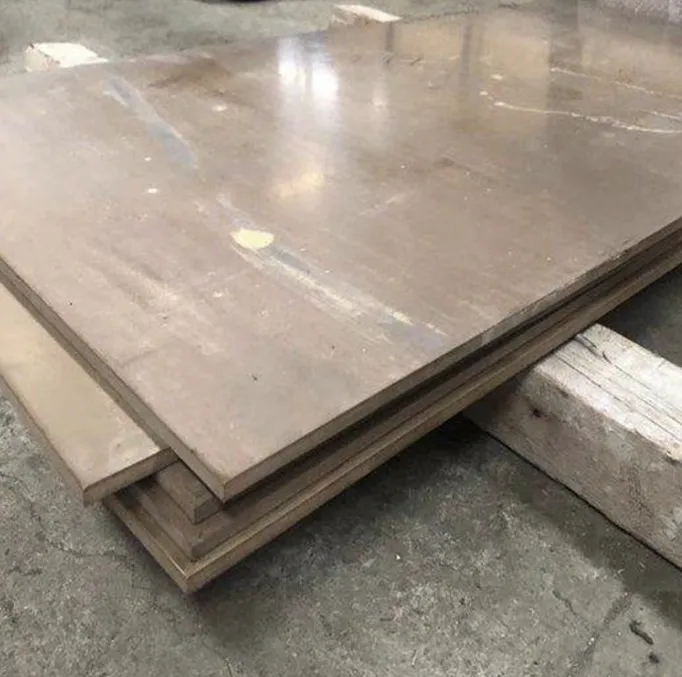

Nickel & Copper Alloy
Specially alloyed plates and sheets engineered for extreme environments handling corrosive acids, alkalis, and high temperatures.
- Nickel Grades: UNS 2200 (Nickel 200) / UNS 2201 (Nickel 201) via ASTM SB 162
- Alloy 20: UNS 8020 (Alloy 20 / 20 CB 3) via ASTM SB 462
- Dimension Range: 5 mm to 100 mm Thick | Up to 2500 mm Width | Up to 6000 mm Length

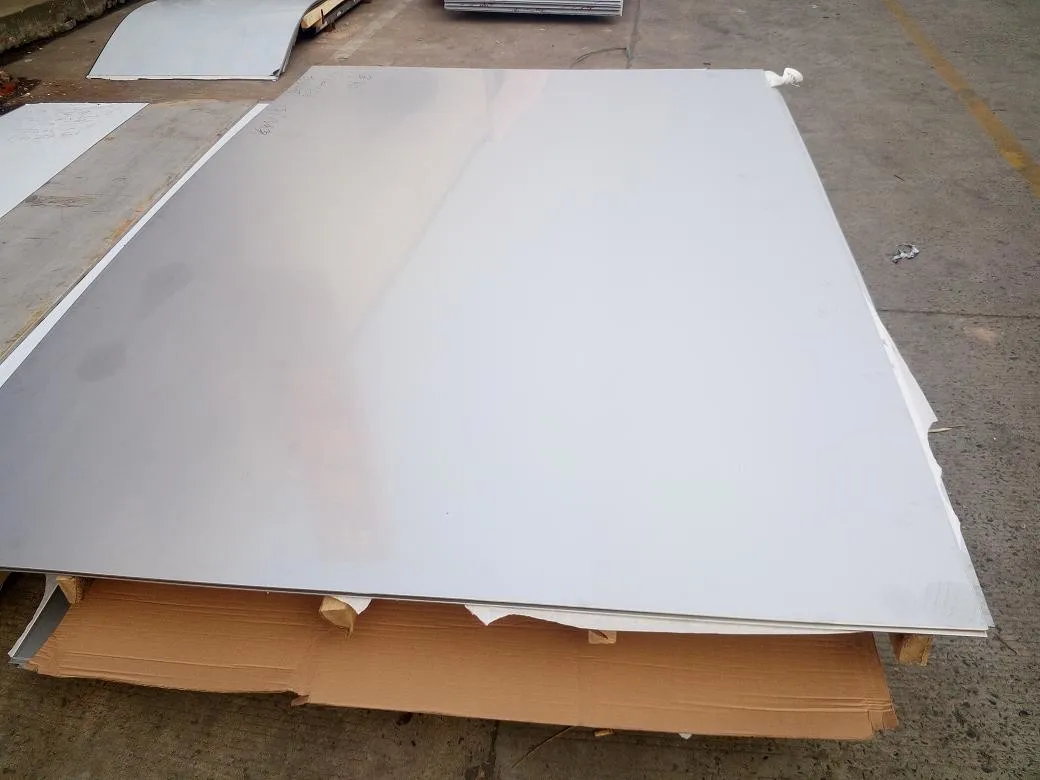

Hastelloy
Nickel-molybdenum-chromium superalloys offering exceptional resistance to pitting, stress-corrosion cracking, and oxidizing atmospheres.
- Grades: Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
- Available Forms: Sheet, Coil, Strips, Heavy Plates, Circle cut, Ring cut

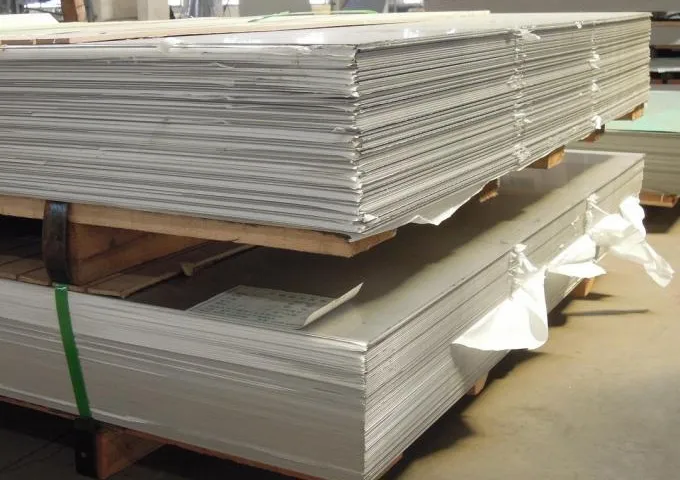

Inconel
Austenitic nickel-chromium-based superalloys ideal for service in extreme environments subjected to pressure and heat.
- Grades: Inconel 600, 601, 625, 625LCF, 686, 718, 800, 825, X-750
- Standard Specifications: ASTM/ASME SB 168, SB 424, SB 443

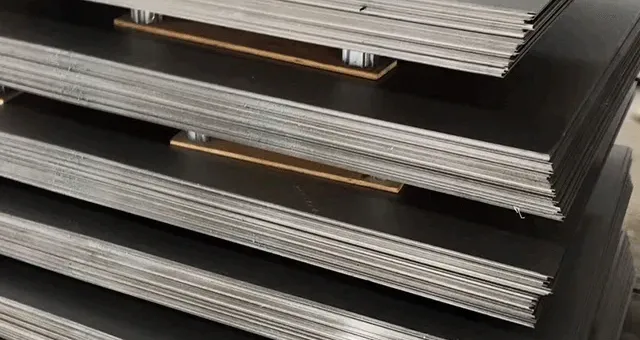

Incoloy
High-strength iron-nickel-chromium alloys designed for elevated temperature applications and excellent resistance to carburization.
- Grades: Incoloy 800, 825, 925, A-286, DS
- Form availability: Supplied across flat-rolled forms and seamlessly integrates with our tubular product range (ASTM B407, B829).

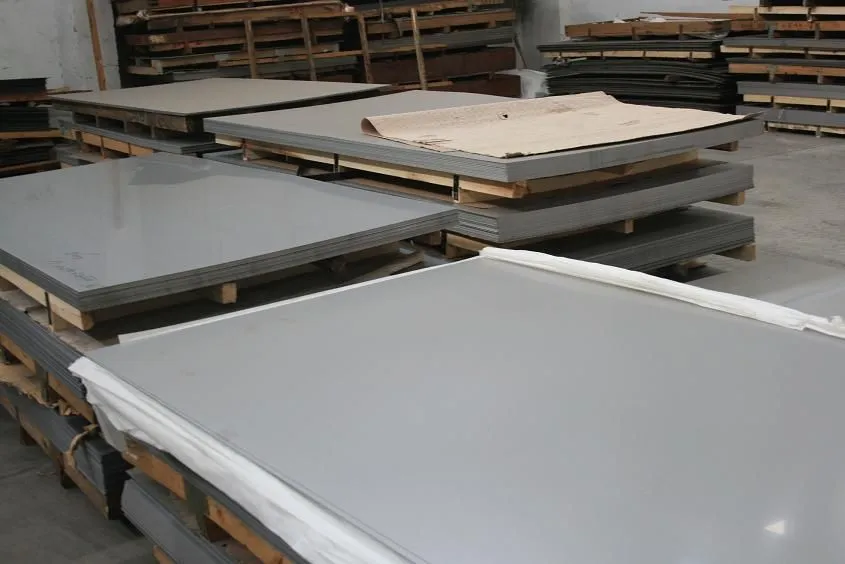

Monel
Nickel-copper alloy known for its superior toughness and resistance to flowing sea water, hydrofluoric acid, and sulfuric acid.
- Grades: Monel 400 (UNS 4400 via ASTM SB 127), Monel K500
- Surface Treatments: Capable of Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish

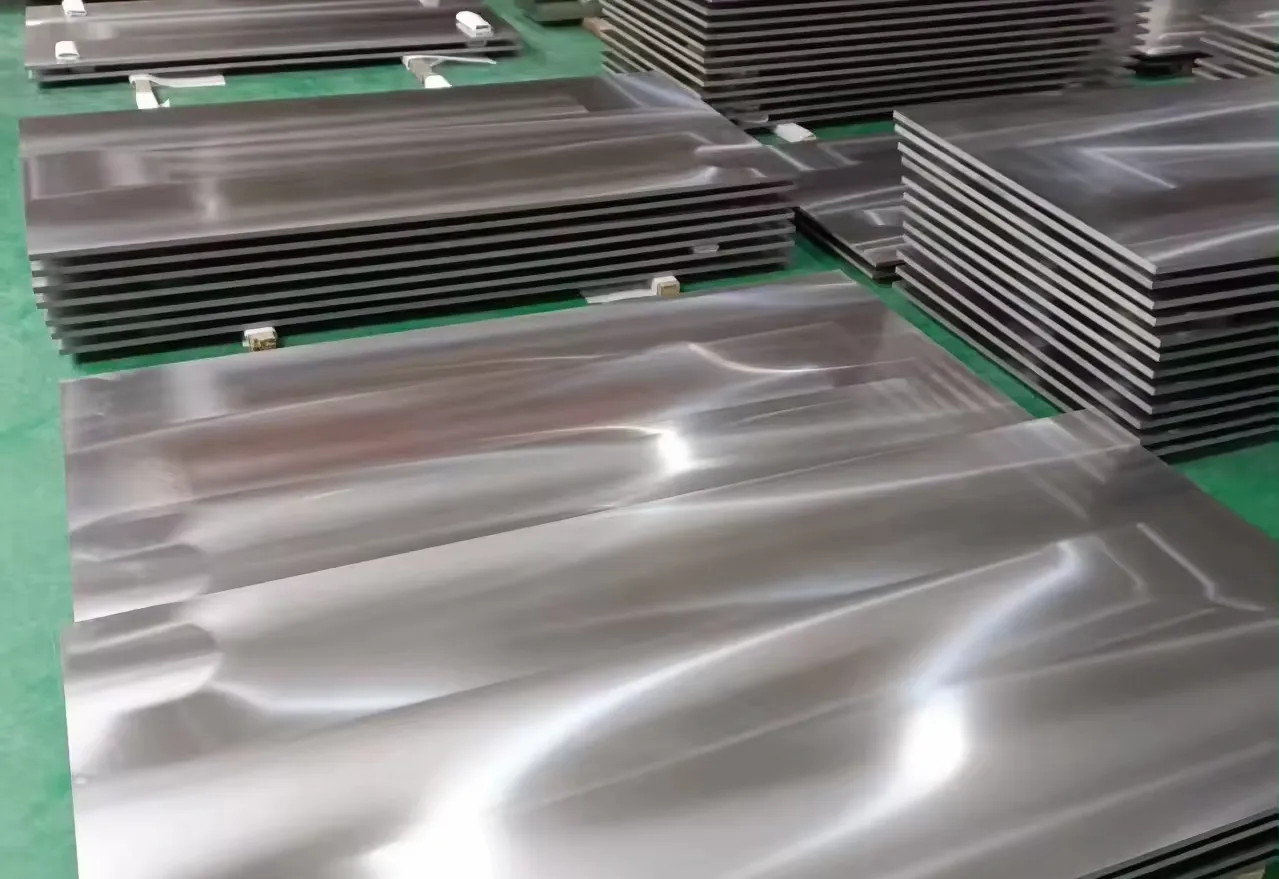

Titanium & Titanium Alloys
Unmatched strength-to-density ratio, widely utilized across aerospace, medical implants, and high-performance industrial sectors.
- Pure Grades: GR1, GR2, GR3, GR4
- Alloy Grades: GR5 (6% Al, 4%V), GR6 (5% Al, 2.5%Sn), GR7, GR9, GR10, GR11, GR12
- Specifications: ASTM B265, ASTM 4911, F67, F136 (Hot and Cold Rolled)
- Dimension Range: 0.3 mm to 60 mm Thick | Length up to 6000 mm

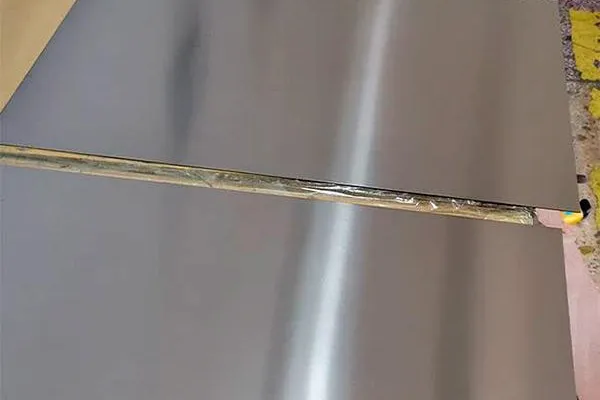

Tantalum
Highly ductile, dark blue-gray transition metal offering absolute immunity to chemical attack at temperatures below 150°C.
- Grades: RO5200, RO5400, RO5252, RO5255 | Tantalum-Tungsten alloys (Ta2.5W, Ta10W)
- Specifications & Purity: ASTM B708-98 | 99.95% min or 99.99% min purity
- Available Forms: Foils, Sheets, Plates, Target Plates, Strips
Titanium Common Specifications
| Specification | Product Form |
|---|---|
| ASTM B265 (Gr2) | Sheet, Strip, and Plate |
| ASTM B338 | Tube (Seamless/Welded) |
| ASTM B348 (Gr2) | Bars and Billets |
| ASTM B861 | Seamless Pipe |
| ASTM B863 | Wire |
| ASTM F67 (Gr2) | Implants (Surgical) |
Tantalum Dimensional Limits
| Form | Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|---|
| Foil | 0.03 - 0.09 | 30 - 600 | 100 |
| Sheet | 0.1 - 0.5 | 30 - 609.6 | 30 - 1000 |
| Board / Plate | 0.5 - 10.0 | 50 - 1000 | 50 - 2000 |
Industrial Applications of Plates & Sheets
Our premium flat-rolled metal products form the crucial structural and pressure-retaining components for global heavy industries.
Petrochemicals & Chemicals
Reactor vessels, heat exchangers, and storage tanks handling highly corrosive agents.
Oil Refineries
Heavy plates for downstream processing columns and structural offshore platforms.
Fertilizers Plants
Acid-resistant alloys for robust ammonia and phosphoric acid production equipment.
Sugar Mills
Thick wear-resistant plates for heavy evaporators, juice heaters, and structural bracing.
Pharmaceuticals
Ultra-pure, electro-polished stainless sheets for hygienic fluid storage and processing.
Textile Machinery
Durable sheet metal for forming the structural chassis of precision weaving and processing units.
Why Source Plates & Sheets from Nace Piping Products?
When procuring industrial plates and sheets, manufacturers require absolute material integrity, precision flatness, and uncompromising chemical composition. As a globally trusted supplier, we provide:
- Regular Carbon Steel Stock: ASTM A516 / ASME SA 516 Gr 70 pressure vessel plates supplied on a regular basis.
- Exotic Alloy Expertise: Vast inventory spanning beyond Stainless Steels into Hastelloy, Inconel, Monel, Titanium, and Tantalum.
- Massive Dimensional Range: Supplying everything from 0.03mm precision foils up to heavy 100mm structural plates.
- NACE MR 01-75 Compliance: Standard compliance for sour-service oil and gas applications, ensuring resistance to sulfide stress cracking.
- Value-Added Processing: In-house capabilities for precise water-jet cutting, circle cutting, ring rolling, and custom shearing.
